Titan Timbers Glue Laminated Columns

Why Titan Timbers are the best choice for your next project?

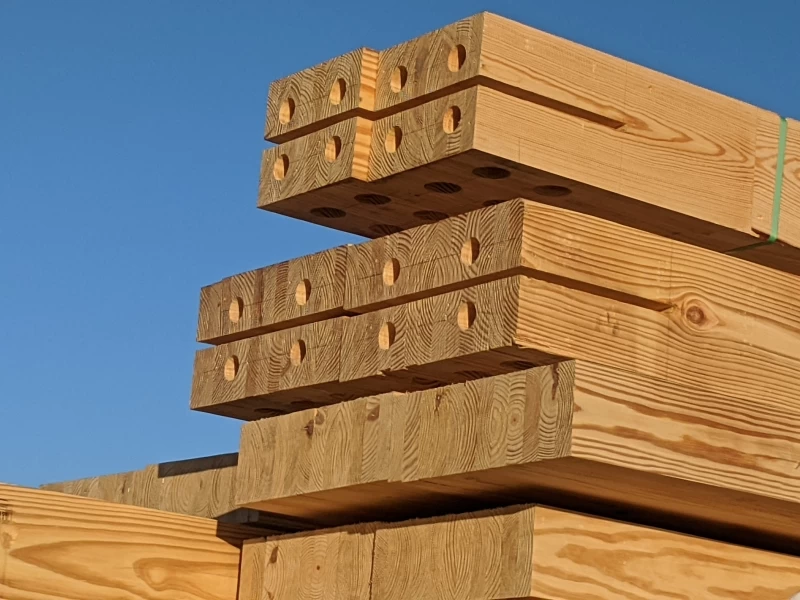

Titan Timbers glue laminated wood columns use #1 SYP (Southern Yellow Pine) lowers for their superior treatability. Permanent two-part Loctite® Purebond GT adhesive is cured in a high-temperature beam press and total face gluing resists individual ply separation, assuring that every column withstands warping and twisting, and are 100% usable on the job site. Mechanical fasteners (nails) are not needed to secure Titan Timber Glue laminated columns. Stringent quality control and grading standards are monitored by AITC, our third-party inspector. This process gives Titan Timbers® dimensional stability that solid sawn timber and mechanically nailed columns don’t have.

Finger Joints

1” structural finger joints, utilizing melamine adhesive that conforms to ASTM 2559, was developed for added strength to Titan Timbers. It’s important to understand that if an adhesive does not conform to this standard, it is NOT a structural finger joint.

About Nail Lams

Nailed and glued columns are simply nailed lumber. Liquid Nails®, Great Stuff™, Super Glue®, Duct Tape®, etc are not structural glue. Its purpose is only to eliminate see-through gaps in the nailed boards. If you are currently using nail lams, ask your supplier for their daily destructive, quality control test analysis. If they share this with you, make a comparison with our strength charts below. If they decline, then ask yourself, “Why am I considering nail lams?”. Our manufacturing process allows us to laminate columns and beams up to 30 plys! Try that with a nail lam!

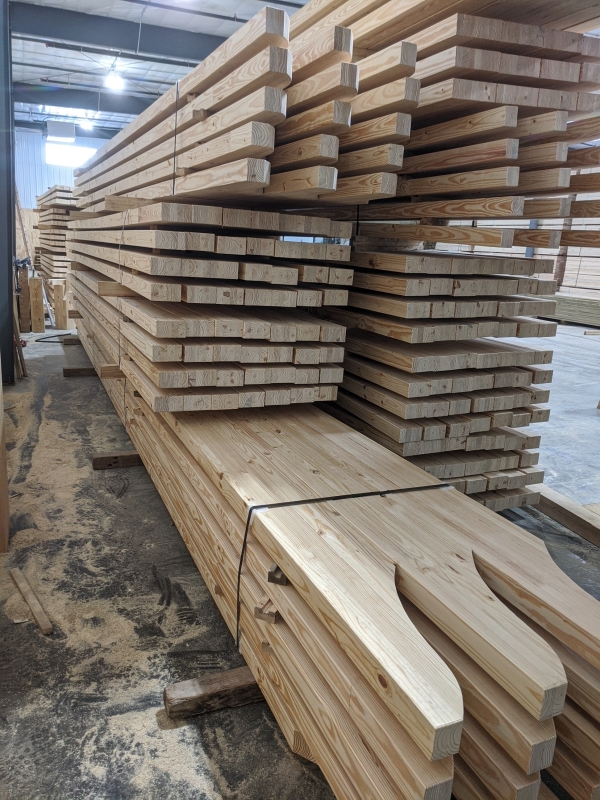

On Hand Inventory

We have a full line of inventory available for prompt shipment of Standard 6’ minimum treated Stock.

  • 3ply 2 x 6 - 16’ to 36’
  • 4ply 2 x 6 - 18’ to 30’
  • 3ply 2 x 8 - 20’ to 32’
  • 4ply 2 x 8 - 22’ to 28’

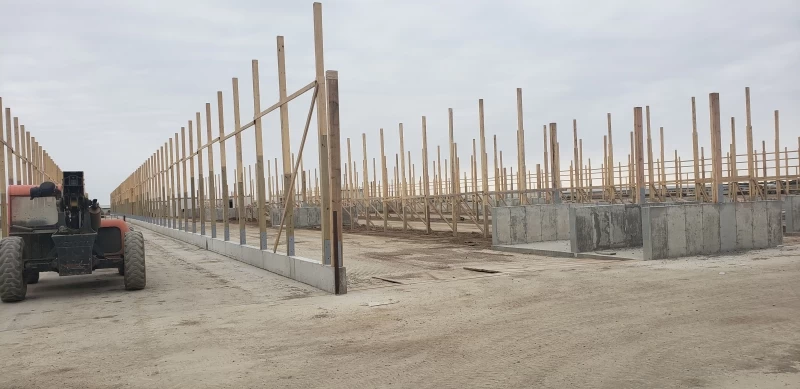

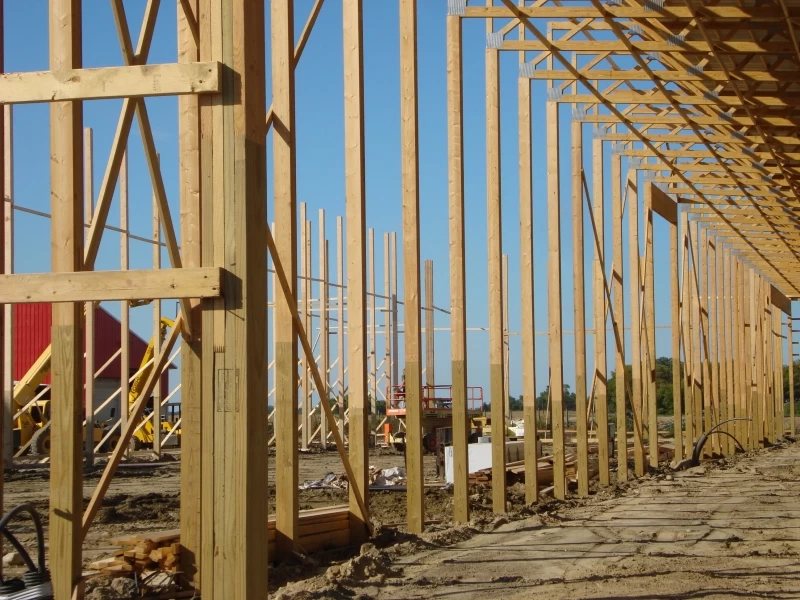

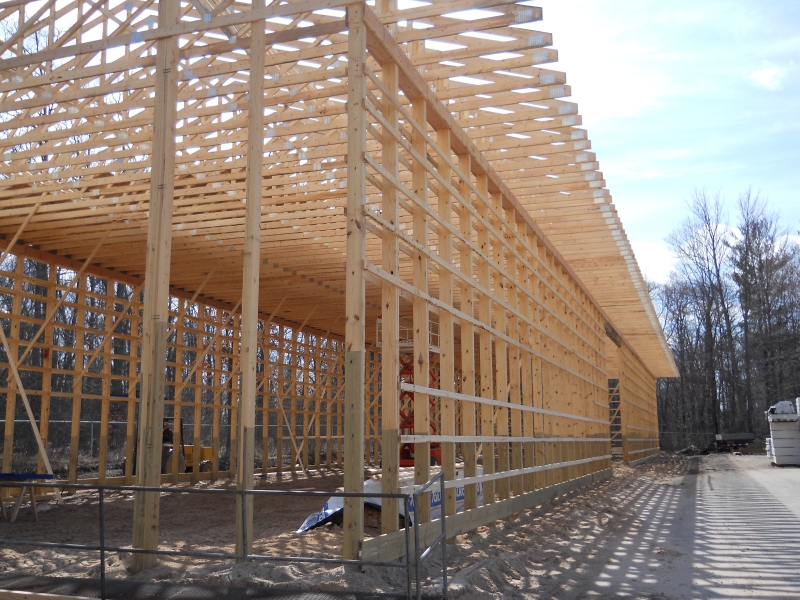

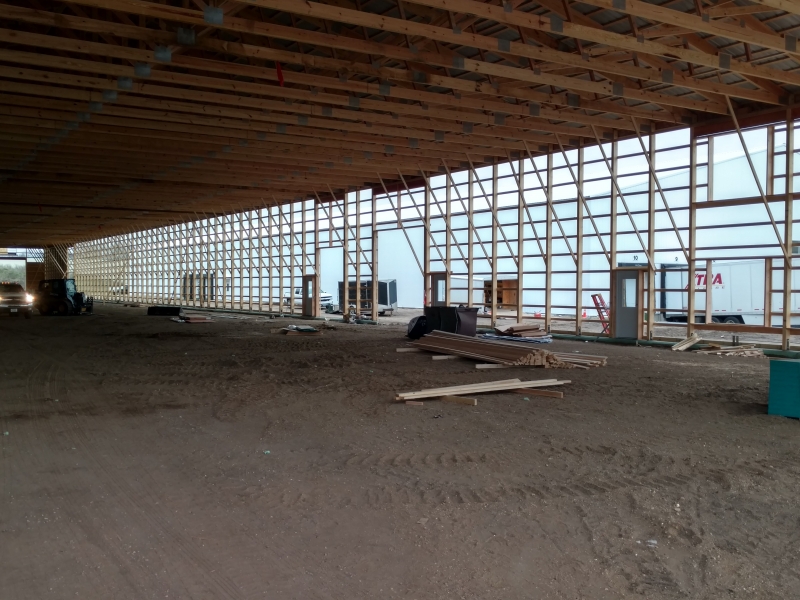

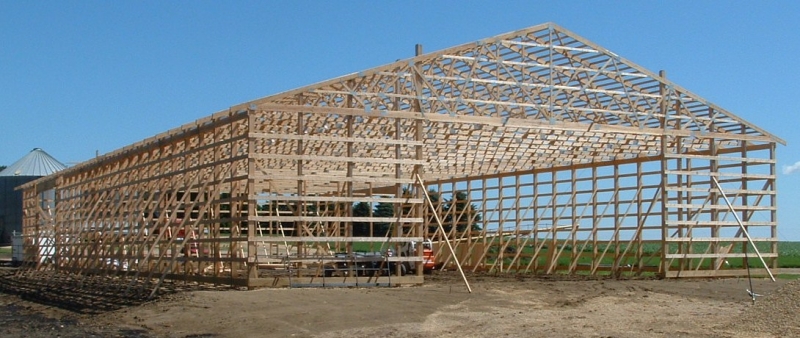

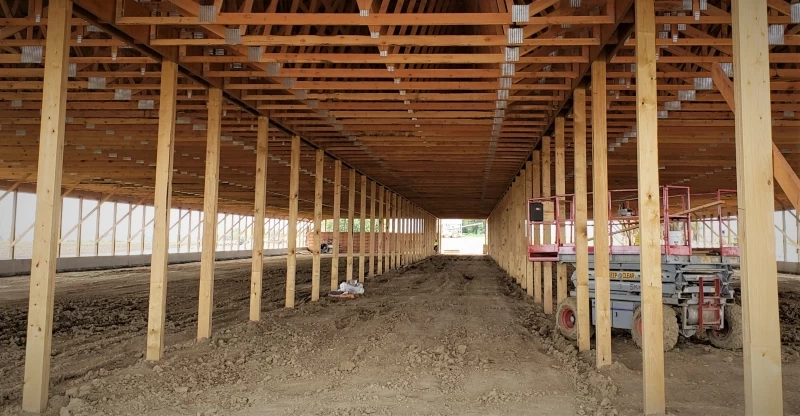

Common Uses

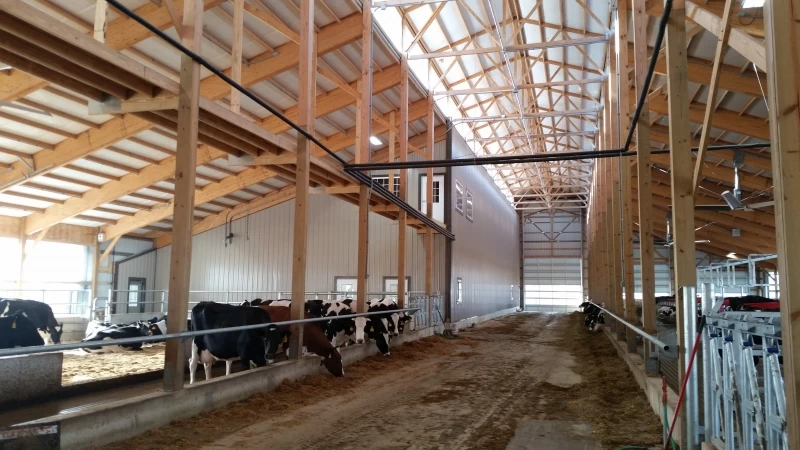

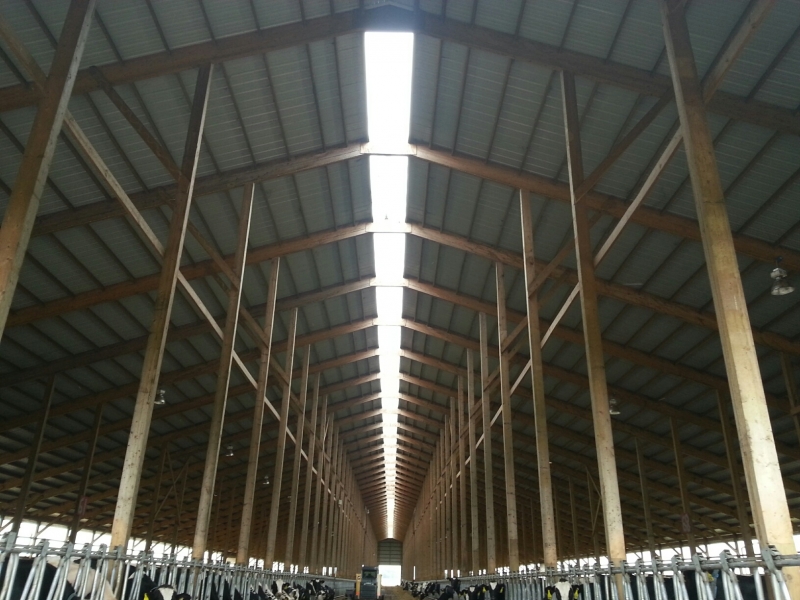

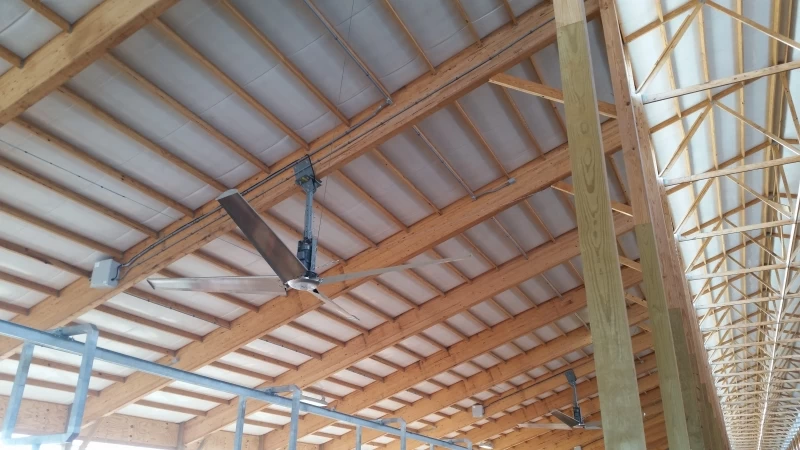

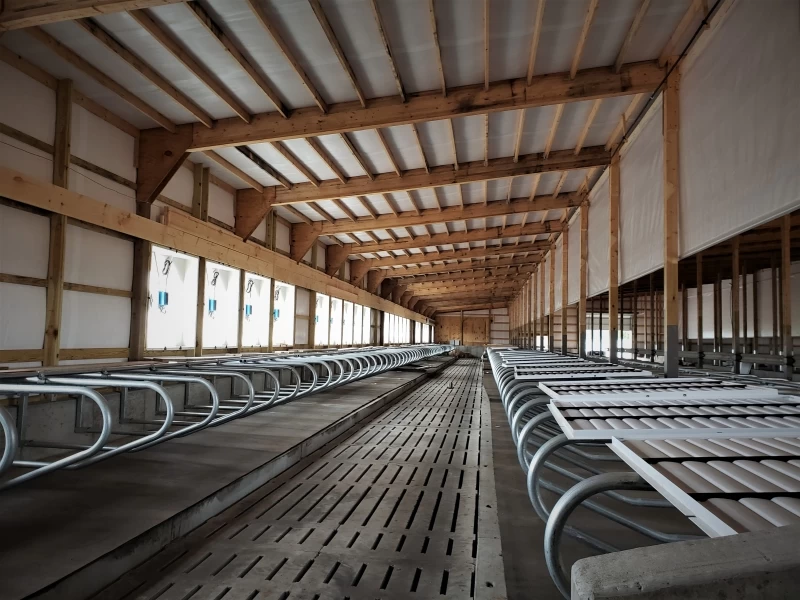

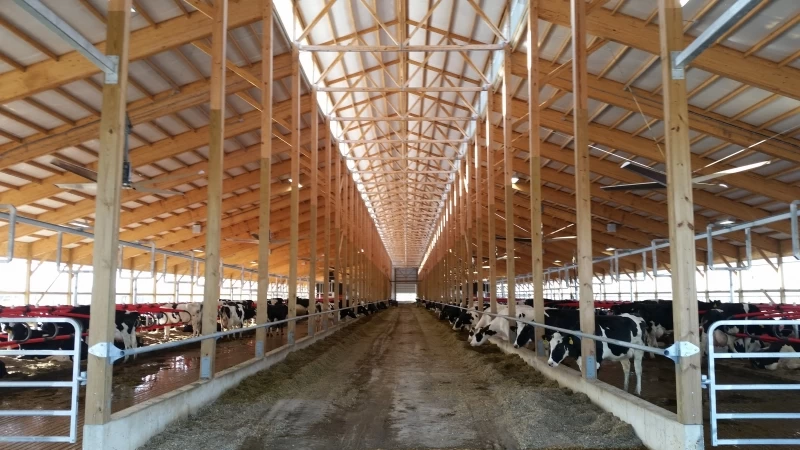

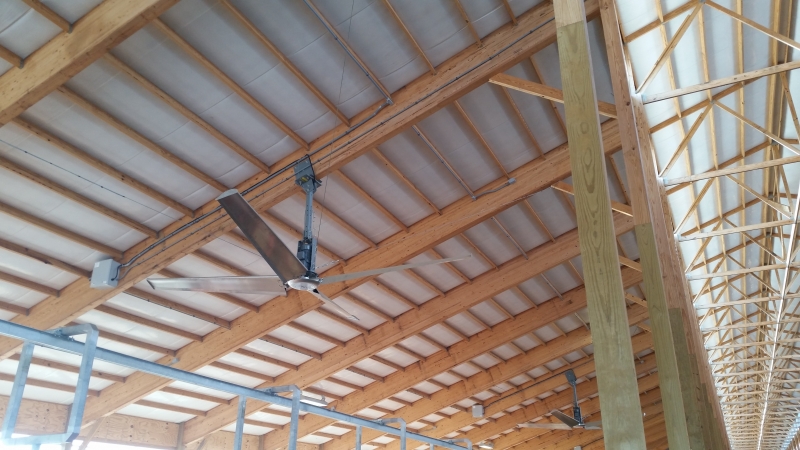

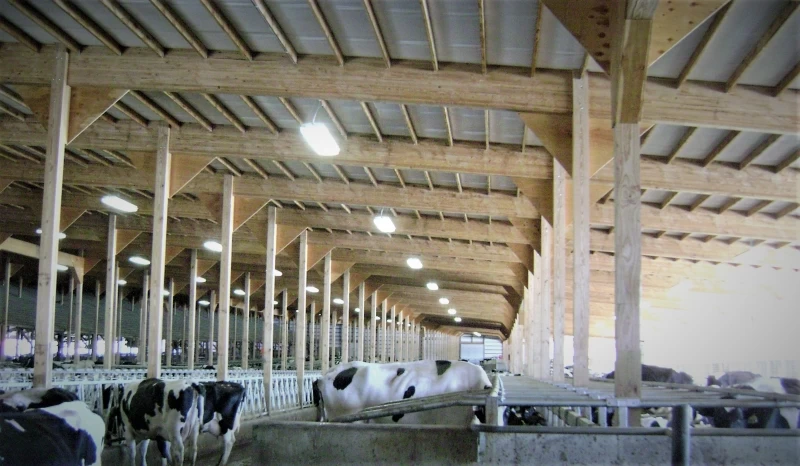

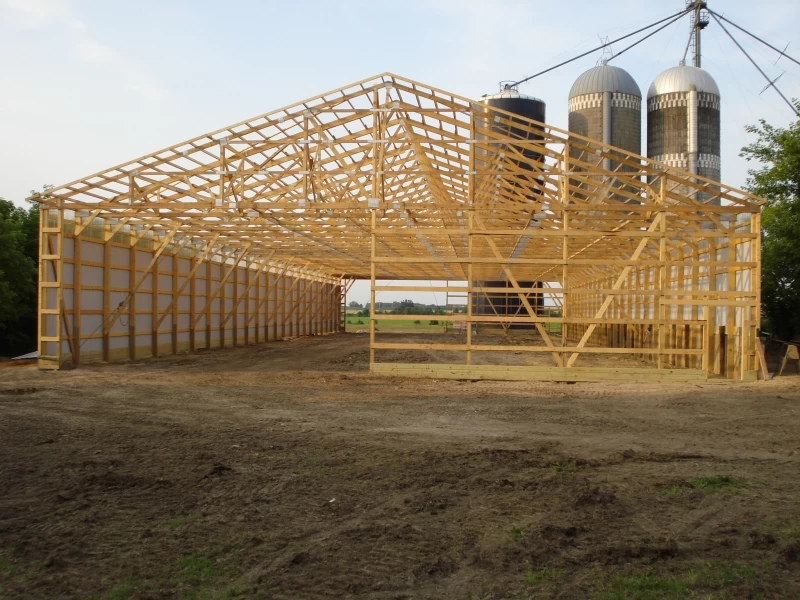

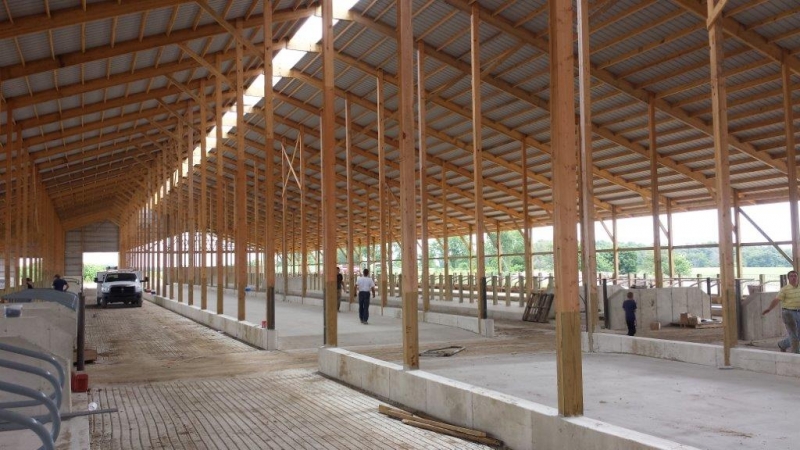

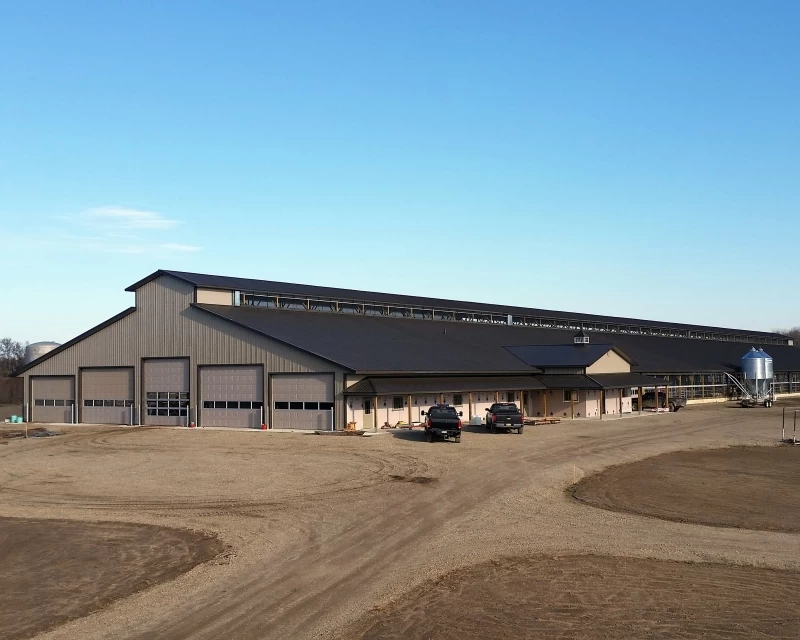

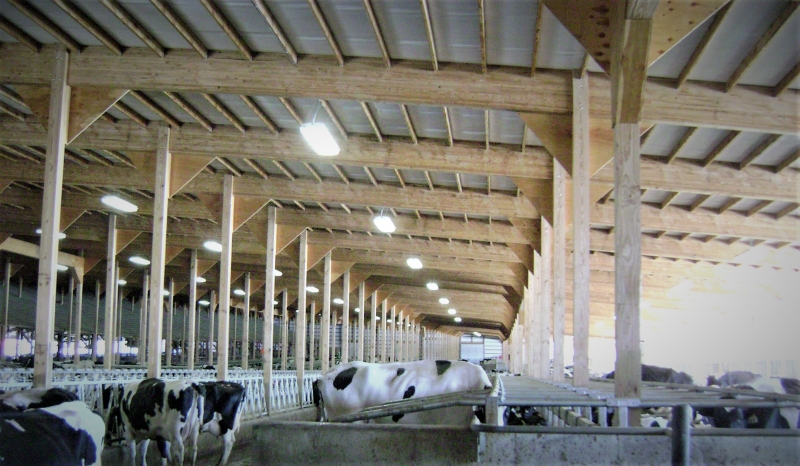

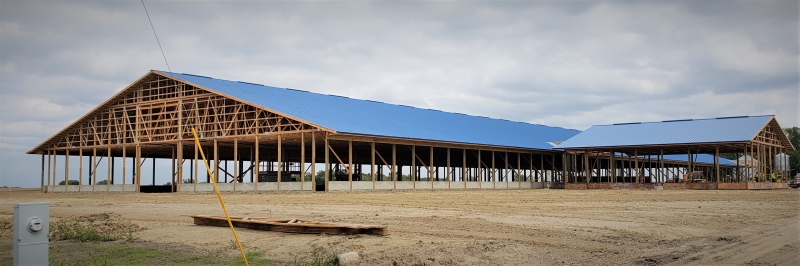

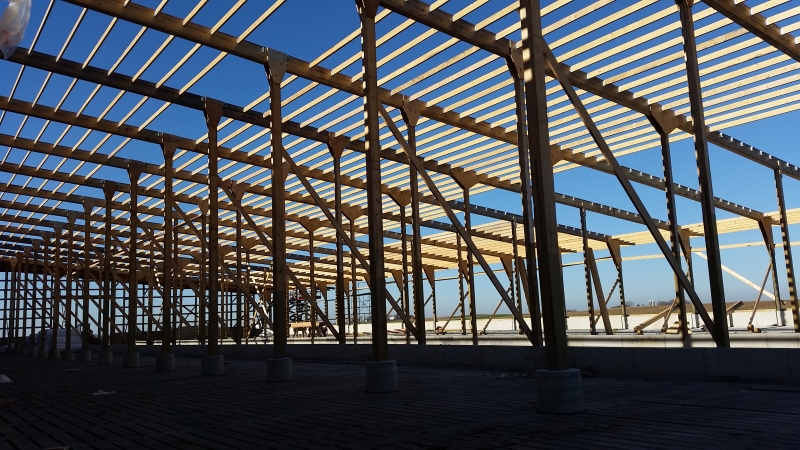

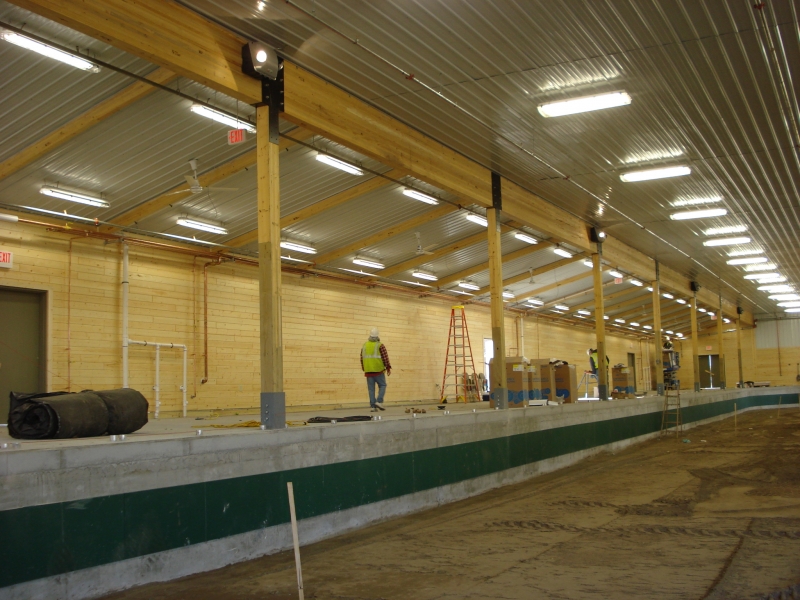

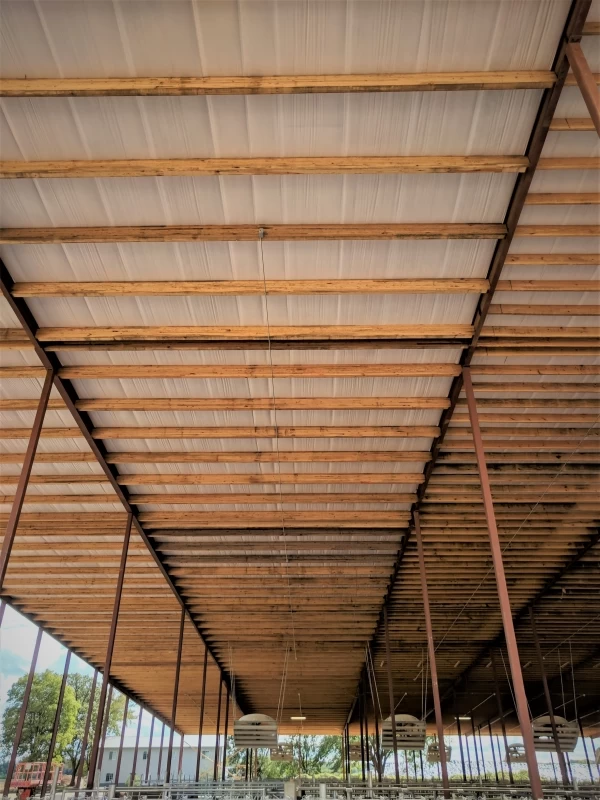

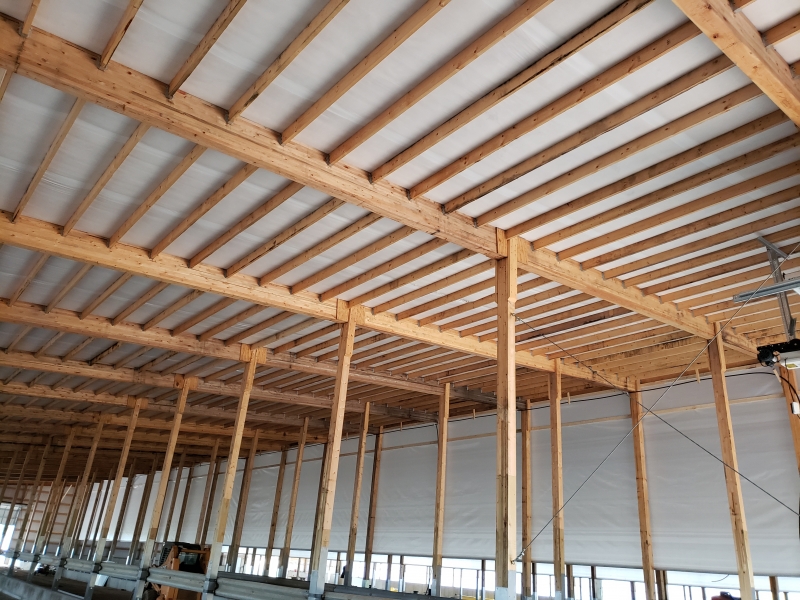

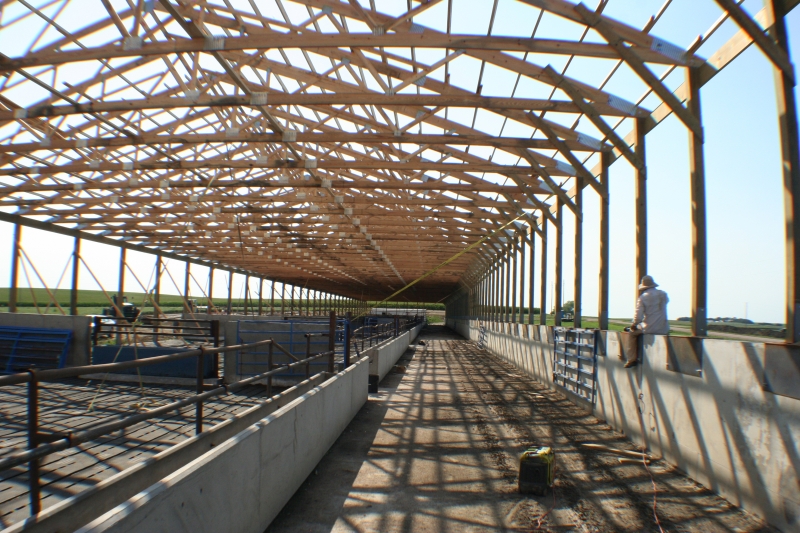

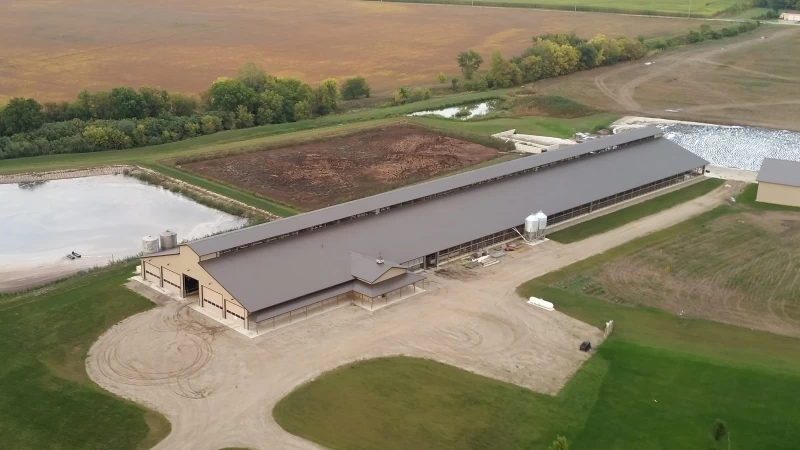

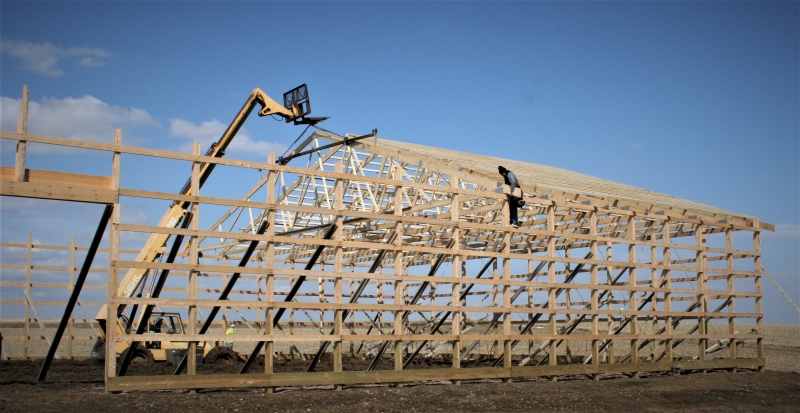

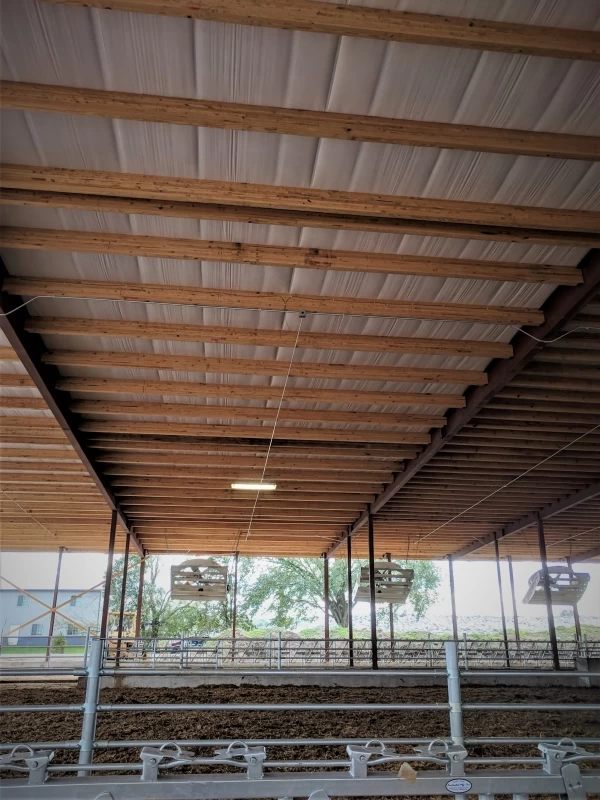

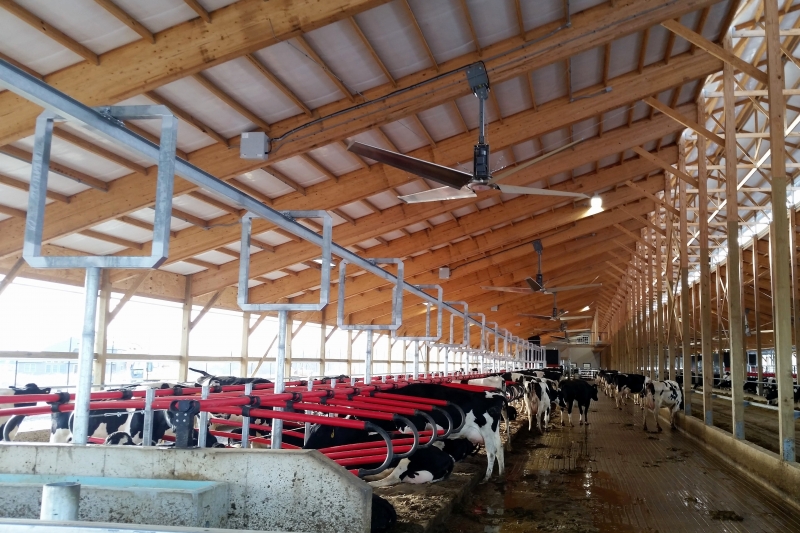

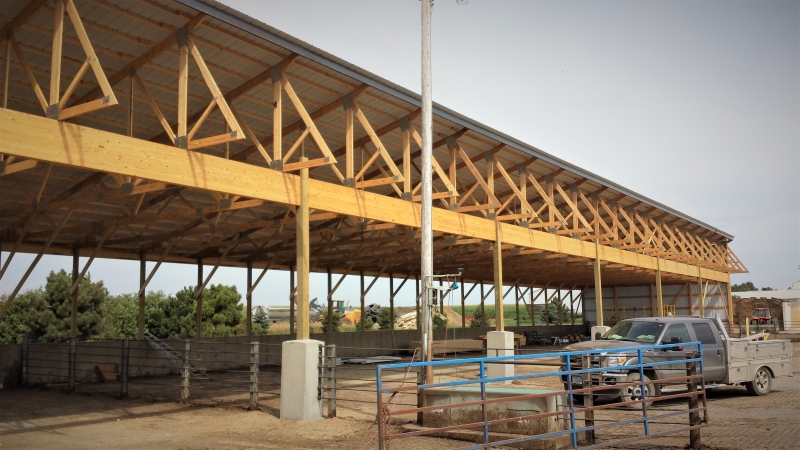

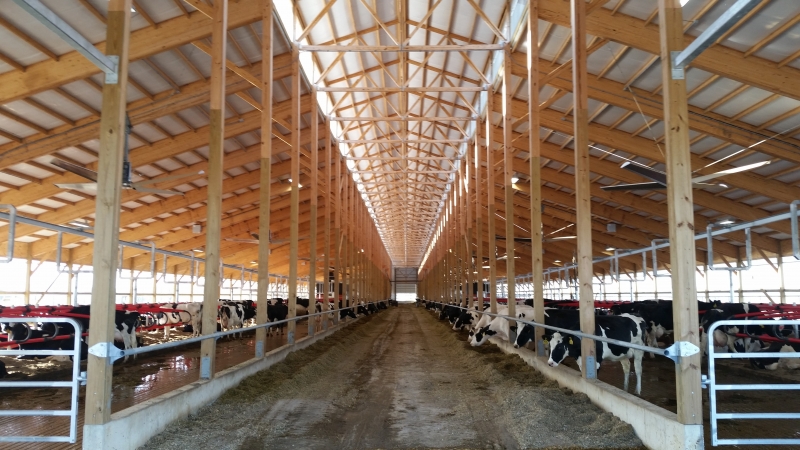

  • Livestock and Dairy Barns

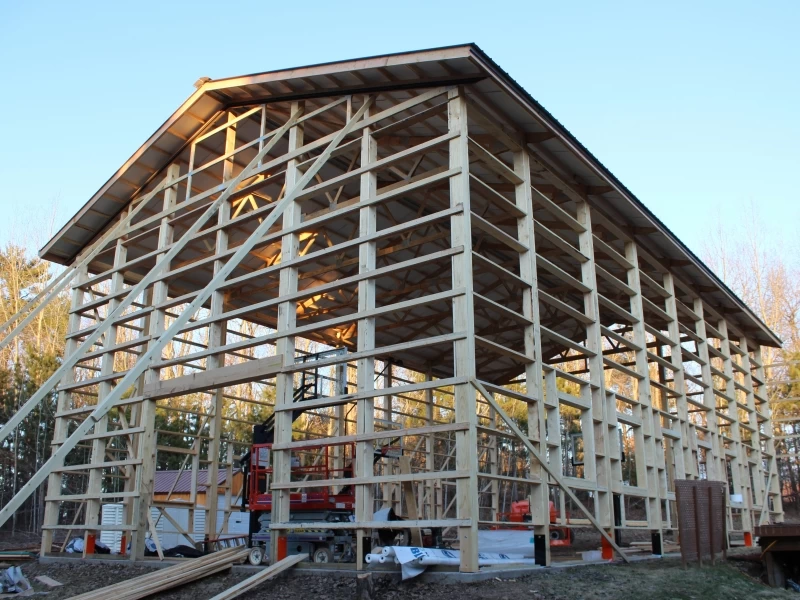

  • Machine & Toy Sheds
  • Suburban Garages
  • Airplane Hangers

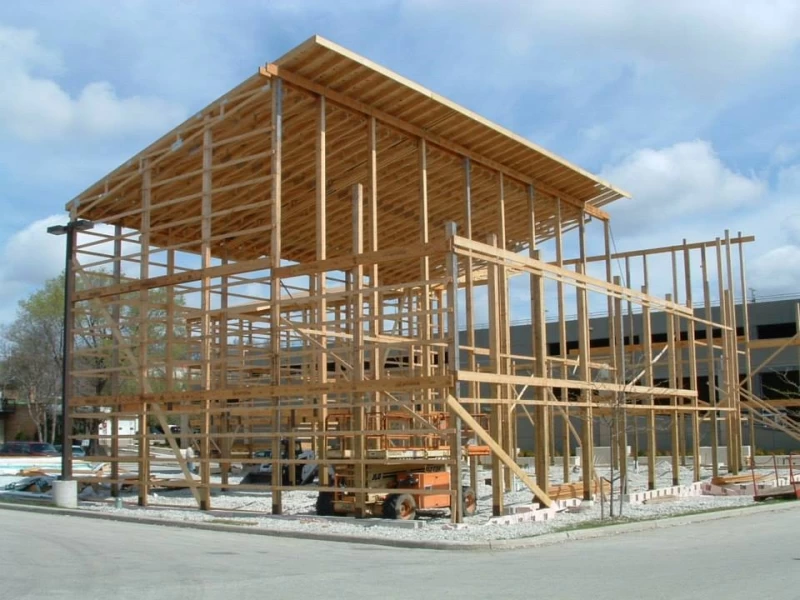

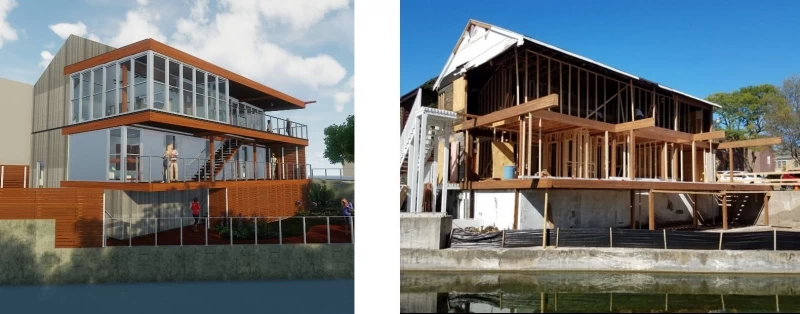

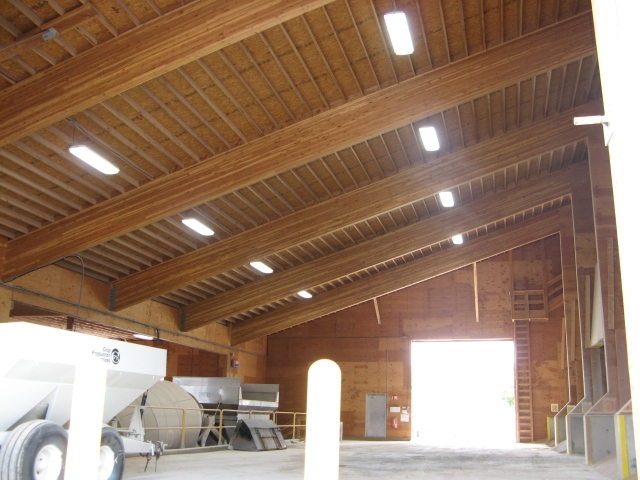

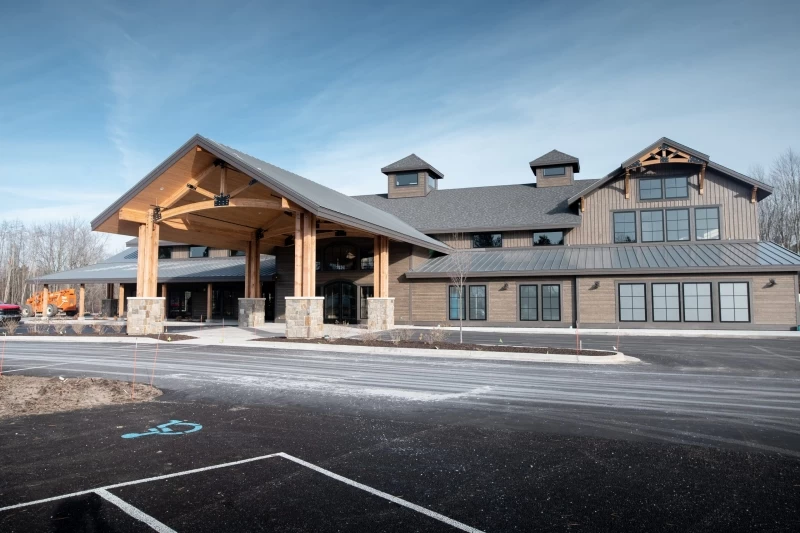

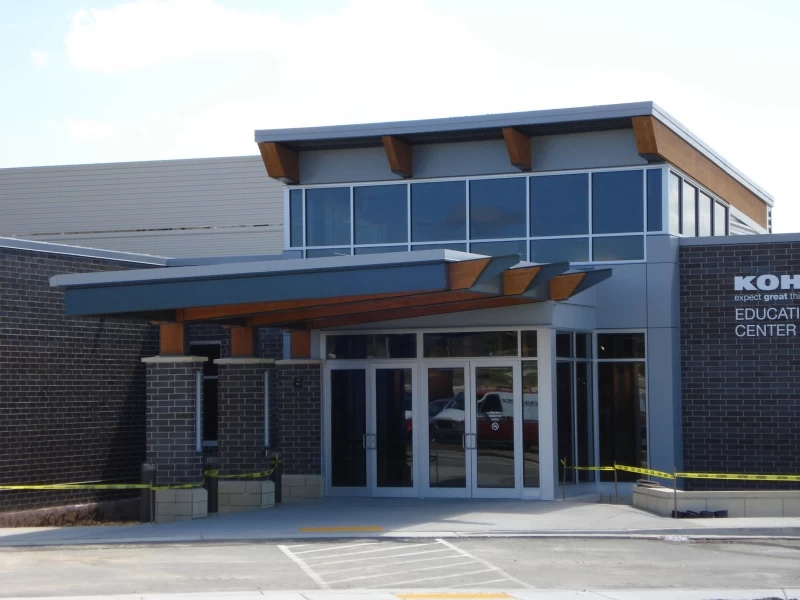

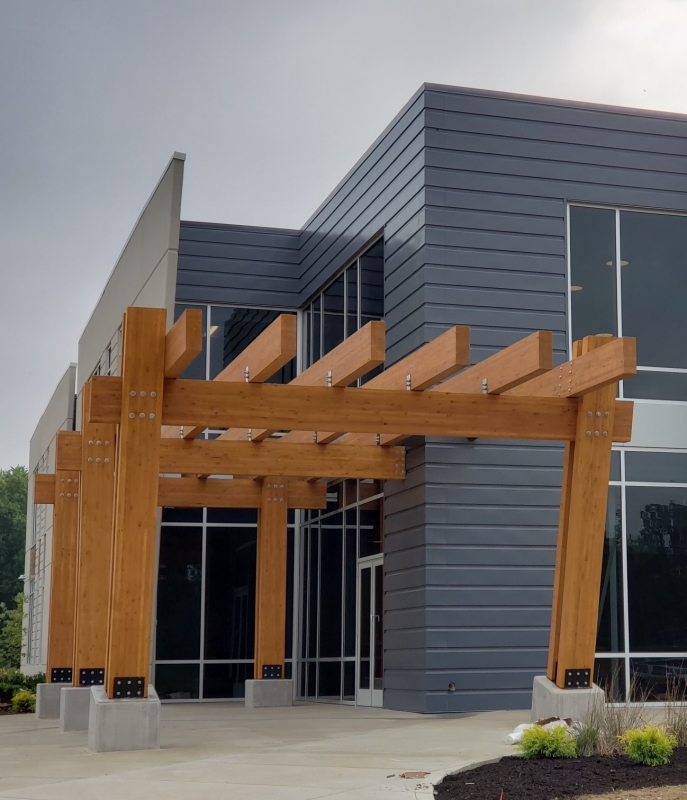

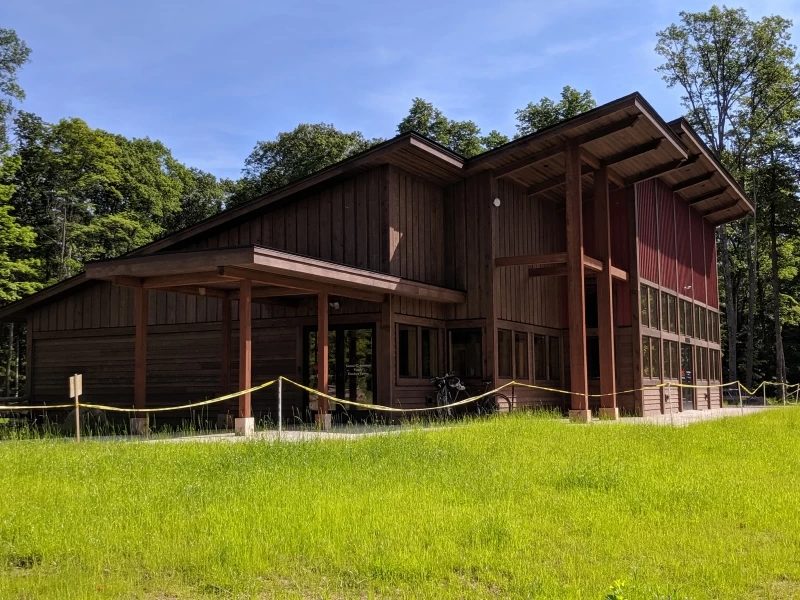

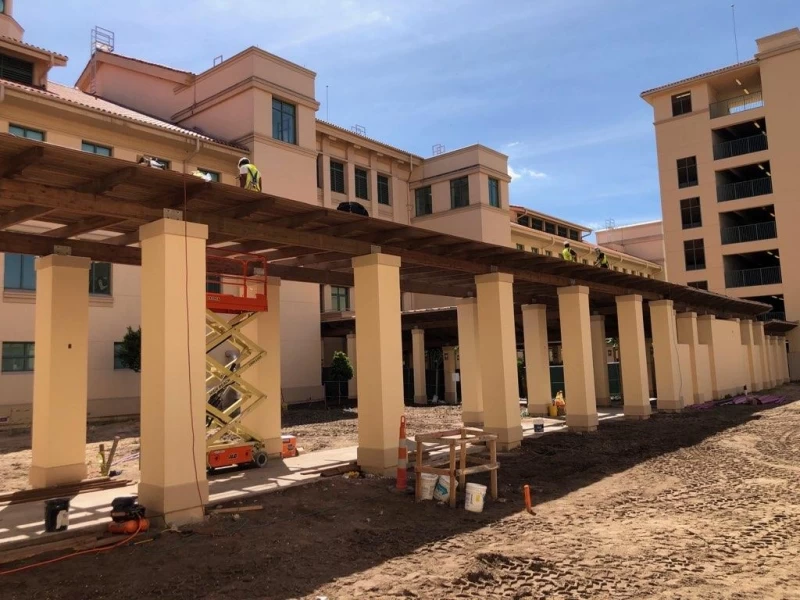

  • Commercial Buildings
Specifications
Timber Technologies Column Design Specs
  • Manufactured From #1 Southern Yellow Pine
  • Pressure Treated To .60 CCA
  • Machine Stress Rated 1650 FB SPF Uppers
  • Permanent Two-Part LOCTITE® PUREBOND GT
Why Use Titan Timbers?
  • 100% usable on the job site - no sorting needed
  • Technical support and custom sizing available
  • Higher design values than nailed columns, per NDS "2001"
  • 50 Year Limited Warranty
  • Full line of inventory in stock, available for prompt shipment
  • Strength chart
TItan Timber Sizes
  • 2' x 4'
  • 2' x 6'
  • 2' x 8'
  • 2' x 10'
  • Lengths From 8' to 62'
  • Depths to 30 PLYS **Nail Lams are restricted to 5 PLYS**
  • Contact Us for Custom Sizes
